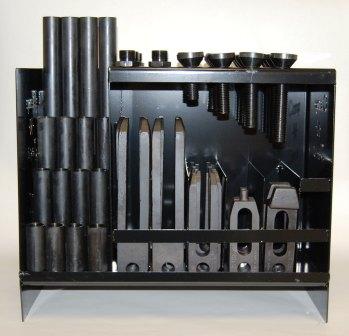

Clamp-N-Jack helps with clamping and fixturing. These stud sets were created especially for Clamp & Jack sets. Studs are made of stress-proof steel. Sets do not include stand.
| Set No. | Tee Slot Size | Stud Size | Stud Lengths – Quantity | Tee Slot Nuts | Hexagon Nuts | Couplings | Washers | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 15 18 24 30 36 | 12 each set | 8 per set | 8 per set | 8 per set | |||
| SS-3 | 1-1/16 | 1″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2 1/2″ Lg. Thd. B. E. | 1-1/16″ x 1″ p 8 N.C. | 1″ – 8 N. C. | 1″ – 8 N.C. | 1″ dia. | |
| SS-4 | 1 | 7/8″ 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2 1/4″ Lg. Thd. B.E. | 1″ x 7/8″ – 9 N.C. | 7/8″ – 9 N. C. | 7/8″ – 9 N.C. | 7/8″ dia. |
| SS-5 | 1-1/16 | 3/4″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2″ Lg. Thd. B.E. | 1-1/16″ x 3/4″ – 10 N.C. | 3/4″ 10 N.C. | 3/4″ 10 N.C. | 3/4″ dia. |
| SS-6 | 1 | 3/4″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2″ Lg. Thd. B.E. | 1″ x 3/4″ – 10 N.C. | 3/4″ 10 N.C. | 3/4″ 10 N.C. | |
| SS-7 | 7/8 | 3/4″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2″ Lg. Thd. B.E. | 7/8″ x 3/4″ – 10 N.C. | 3/4″ 10 N.C. | 3/4″ 10 N.C. | |
| SS-8 | 13/16 | 3/4″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2″ Lg. Thd. B.E. | 13/16″ x 3/4″ -10 N.C. | 3/4″ 10 N.C. | 3/4″ 10 N.C. | 3/4″ dia. |
| SS-9 | 13/16 | 5/8″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2″ Lg. Thd. B.E. | 13/16″ x 5/8″ – 11 N.C. | 5/8″ – 11 N.C. | 5/8″ – 11 N.C. | 5/8″ dia. |
| SS-10 | 3/4 | 5/8″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2″ Lg. Thd. B.E. | 3/4″ x 5/8″ – 11 N.C. | 5/8″ – 11 N.C. | 5/8″ – 11 N.C. | 5/8″ dia. |
| SS-11 | 11/16 | 5/8″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2″ Lg. Thd. B.E. | 11/16″ x 5/8″ – 11 N.C. | 5/8″ – 11 N.C. | |||
| SS-12 | 11/16 | 1/2″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 1 1/2″ Lg. Thd. B.E. | 11/16″ x 1/2″ – 13 N.C. | 1/2″ – 13 N.C. | 1/2″ dia. | ||
| SS-13 | 5/8 | 1/2″ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 1 1/2″ Lg. Thd. B.E. | 5/8″ x 1/2″ – 13 N.C. | 1/2″ – 13 N.C. | 1/2″ – 13 N.C. | 1/2″ dia. | |
| Tee Slot Nut | |
|---|---|
| Slot Size | Thread Size |
| 1″ | 7/8″ – 9 N.C. |
| 1-1/16″ | 3/4″ – 10 N.C. |
| 1″ | 3/4″ – 10 N.C. |
| 7/8″ | 3/4″ – 10 N.C. |
| 13/16″ | 3/4″ – 10 N.C. |
| 13/16″ | 5/8″ – 11 N.C. |
| 3/4″ | 5/8″ – 11 N.C. |
| 11/16″ | 5/8″ – 11 N.C. |
| 11/16″ | 1/2″ – 13 N.C. |
| 5/8″ | 1/2″ – 13 N.C. |
| 9/16″ | 1/2″ – 13 N.C |
| Threaded Studs | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 |
| 1 | N/A | ||||||||
| 7/8 | N/A | ||||||||
| 3/4 | N/A | ||||||||
| 5/8 | N/A | ||||||||
| 1/2 | |||||||||
| Hexagon Nuts | |
|---|---|
| Slot Size | Thread Size |
| 1″ | 8 N.C. |
| 7/8″ | 9 N.C. |
| 3/4″ | 10 N.C. |
| 5/8″ | 11 N.C. |
| 1/2″ | 13 N.C. |
| Hexcoupling | |
|---|---|
| Slot Size | Thread Size |
| 1″ | 8 N.C. |
| 7/8″ | 9 N.C. |
| 3/4″ | 10 N.C. |
| 5/8″ | 11 N.C. |
| 1/2″ | 13 N.C. |
| Washers |
|---|
| Slot Size |
| 1″ |
| 7/8″ |
| 3/4″ |
| 5/8″ |
| 1/2″ |
| Individual Component Parts for A Series | ||
|---|---|---|
| Part Number | Image | Description |
| A-2-SB |  | Swivel Base – 0″ – 2″ | 1″ – 8 N.C.C Thread |
| A-3-SB | Swivel Base – 0″ – 3″ | 1″ – 8 N.C. Thread | |
| A-4-SB | Swivel Base – 0″ – 4″ | 1″ – 8 N.C. Thread | |
| A-5-SB | Swivel Base – 0″ – 5″ | 1″ – 8 N.C. Thread | |
| A-4-T |  | Support Tube – 4″ Length | 1-1/2″ dia. |
| A-8-T | Support Tube – 8″ Length | 1-1/2″ dia. | |
| A-12-T | Support Tube – 12″ Length | 1-1/2″ dia. | |
| A-16-T | Support Tube – 16″ Length | 1-1/2″ dia. | |
| A-20-T | Support Tube – 20″ Length | 1-1/2″ dia. | |
| A-44-S |  | 4-3/4″ Straight Strap – For 1/2″ thru 7/8″ Studs |
| A-46-S | 6″ Straight Strap – For 1/2″ thru 7/8″ Studs | |
| A-46-S-1 | 6″ Straight Strap – For 7/8″ thru 1″ Studs | |
| A-48-S | 8″ Straight Strap – For 1/2″ thru 7/8″ Studs | |
| A-48-S-1 | 8″ Straight Strap – For 7/8″ thru 1″ Studs | |
| A-52-S-1 | 12″ Straight Strap – For 7/8″ thru 1″ Studs | |
| A-47-F |  | 7″ Finger Strap – For 1/2″ thru 7/8″ Studs |
| A-47-F-1 | 7″ Finger Strap – For 7/8″ thru 1″ Studs | |
| A-48-G |  | 8″ Gooseneck Strap – For 1/2″ thru 7/8″ Studs |
| A-48-G-1 | 8″ Gooseneck Strap – For 7/8″ thru 1″ Studs | |
| A-60-TC |  | Tube Coupling |
| A-71-JB |  | Jack Base |
| A-73-JS |  | 3″ Jack Screw | 1″ – 8 Thread Size |
| A-75-JS | 5″ Jack Screw | 1″ – 8 Thread Size | |
| A-90-LJ |  | 3-6″ Low Jack Set (Swivel, Body, Base, and Pin Wrench) Not Sold Separately. |
