Clamp-N-Jack provides adjustable work holding for all different shapes and sizes of parts. Clamp-n-jack can be used in fixturing and clamping large parts for horizontal boring mills or any other type of tool room work where odd shaped parts are the norm.

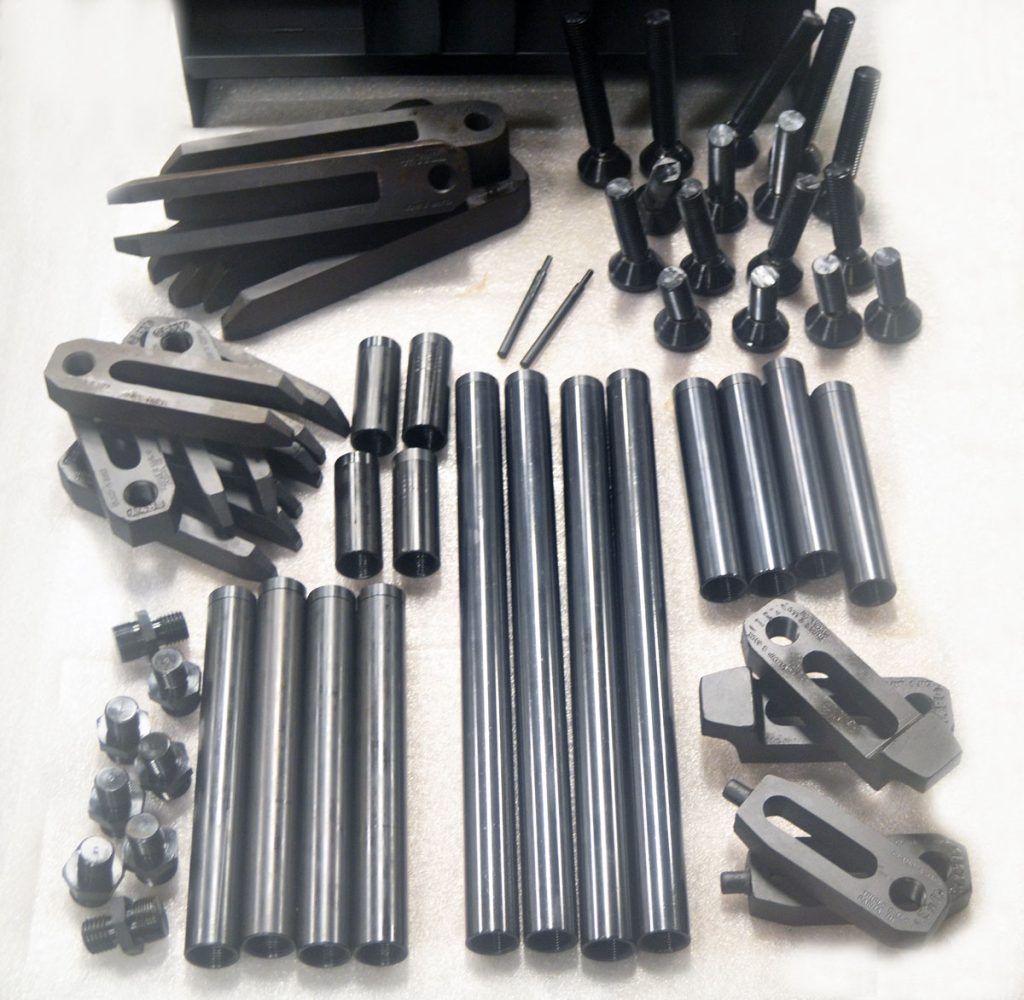

Components are selected for packaged sets. The Master Set and Utility Set differ only in the number of component parts included in each. Each set is furnished with a bench cabinet and all parts are arranged so they can be selected quickly.
| CLAMP-N-JACK | Catalog No. | MSA | MSA-1 | USA | USA-1 |
|---|---|---|---|---|---|
| Tree Slot Stud Size: | 1/2-7/8″ | 1/2-1″ | 1/2-7/8″ | 1/2-1″ | |
| Support Tubes: | 4″ & 8″ | 4 | 4 | 2 | 2 |
| 12″ & 20″ | 4 | 4 | |||
| Swivel Bases: | 2″, 3″, 4″, & 5″ | 4 | 4 | 2 | 2 |
| Straps: | 4 3/4″ Straight | 2 | 2 | ||
| 6″ Straight | 4 | 2 | 2 | ||
| 7″ Finger | 2 | 2 | |||
| 8″ Straight | 4 | 6 | 2 | ||
| 8″ Gooseneck | 2 | 2 | 2 | 2 | |
| 12″ Straight | 4 | ||||
| Tube Couplings: | 8 | 8 | 4 | 4 | |
| Cabinet: | Heavy duty plywood | Heavy duty plywood | |||
| Shipping Weight: | 137 lbs | 150 lbs | 42 lbs | ||
| STANDARD JACK SET | SJSA |
|---|---|
| Jack bases | 4 |
| Jack screws | (4)3″ & (4)5″ |
| Pin Wrench | 1 |
| Support tubes | – |
| Shipping weight | 15 lbs |
| LOW JACK SET | LJSA |
|---|---|
| Jack bases | 4 |
| Jack bodies | 4 |
| Jack screws | 4 |
| Pin wrench | 1 |
| Shipping weight | 15 lbs |
